Construction of the Mechanical Section of an Ultrasonic Testing Device with Precision (0.005 mm)

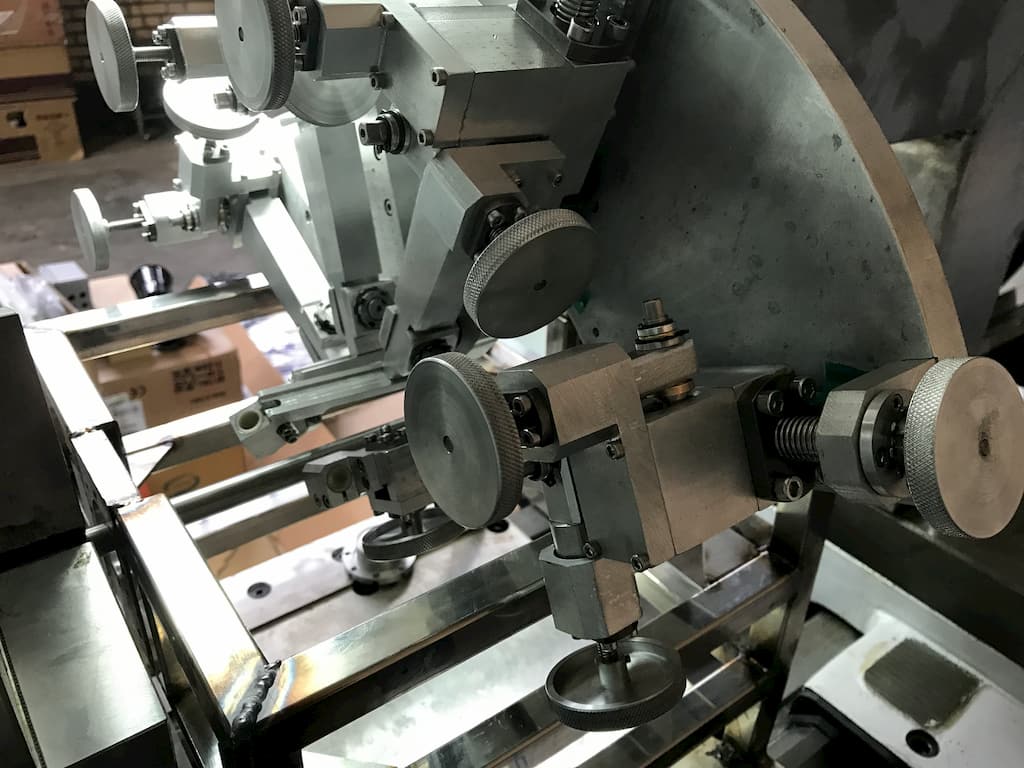

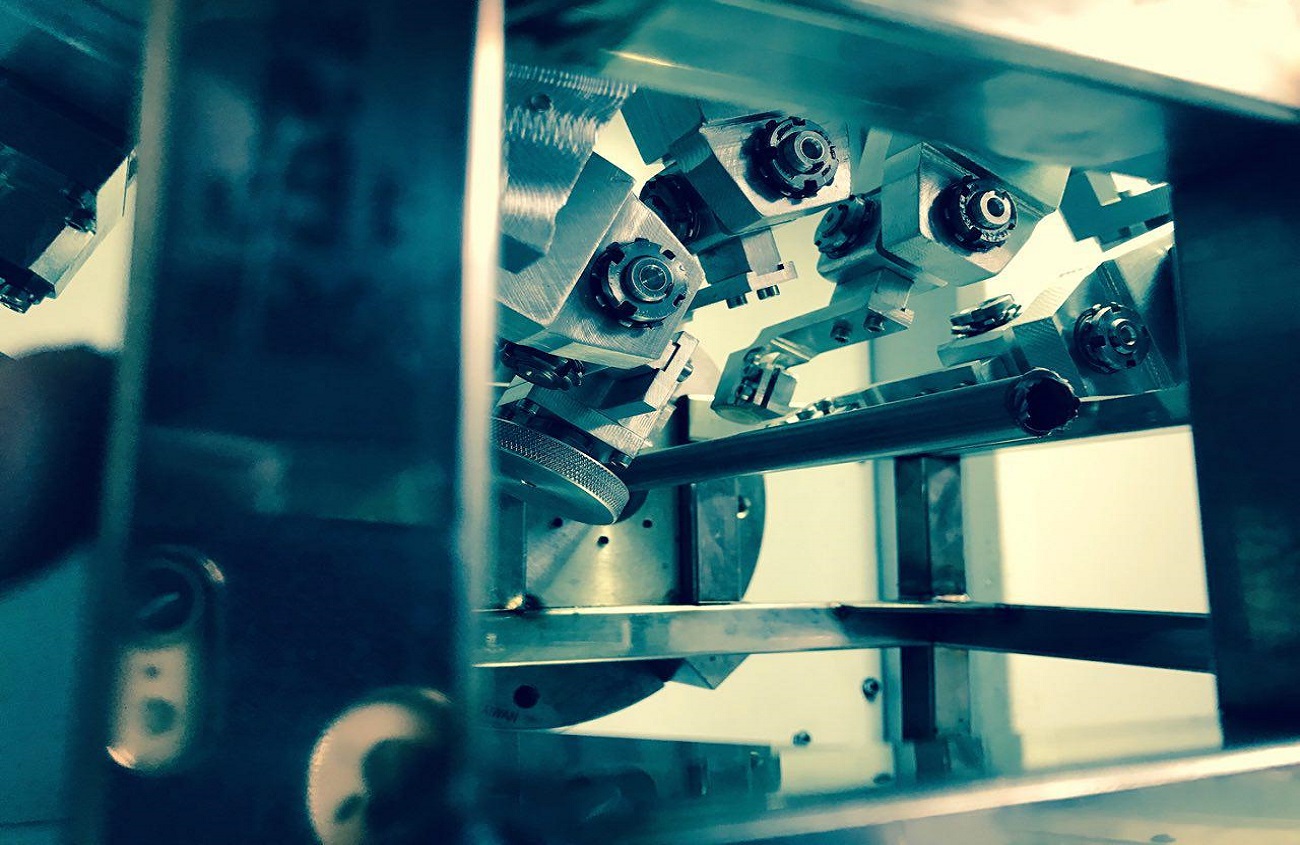

This device, developed by Sepanta Engineering Group, includes three probes, each capable of moving and being adjusted in three directions. A key aspect of this project is the device’s small size and high mechanical adjustment precision. To achieve this precision, special ball screws and linear guides were used. Additionally, the design process incorporated advanced simulation tools to ensure optimal alignment and functionality of the probes. The construction also focused on minimizing vibrations and enhancing stability during operation, utilizing high-quality materials and precise assembly techniques. Extensive testing was conducted to validate the device’s performance and accuracy, ensuring it meets the stringent standards required for ultrasonic testing applications.
